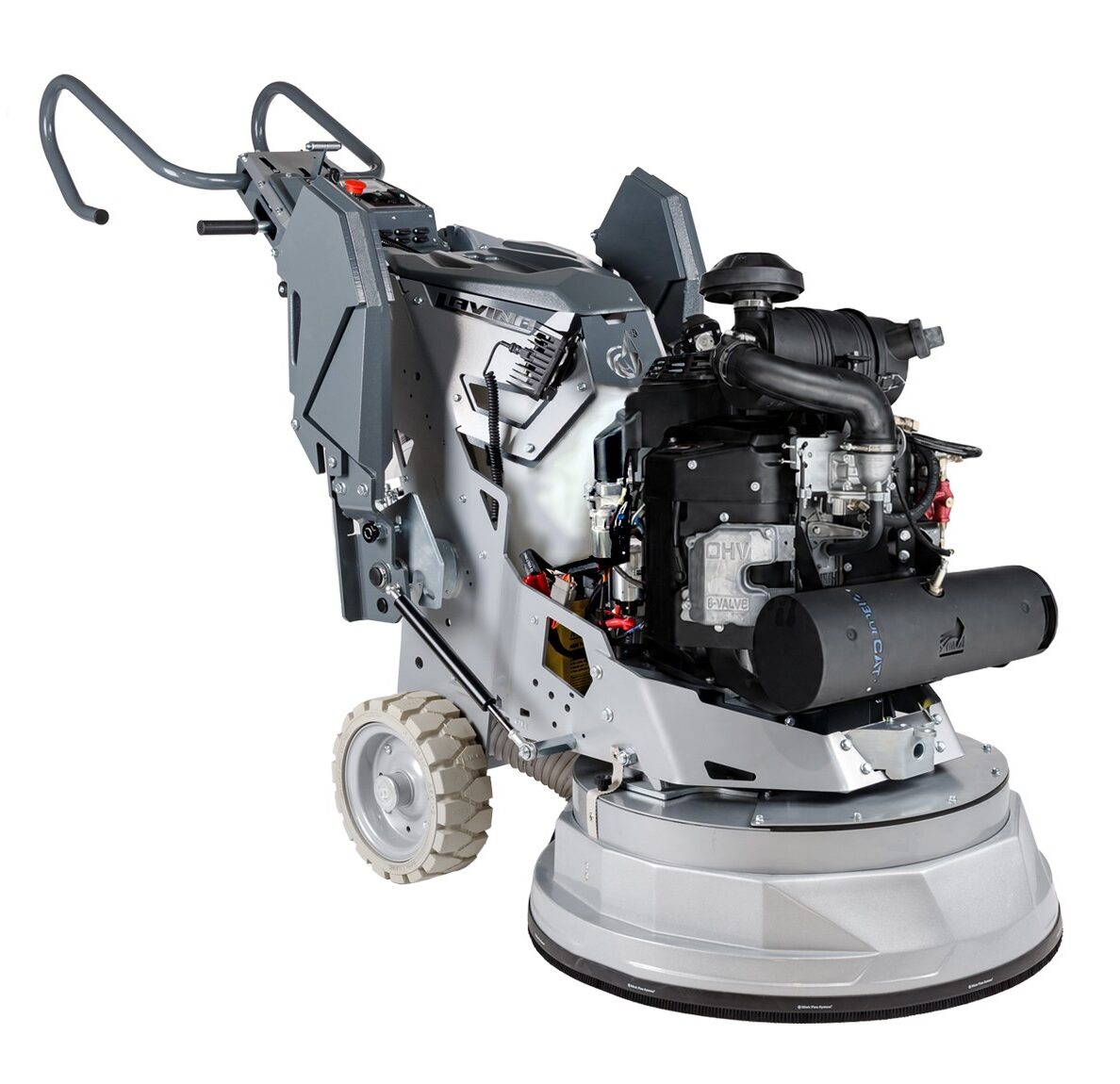

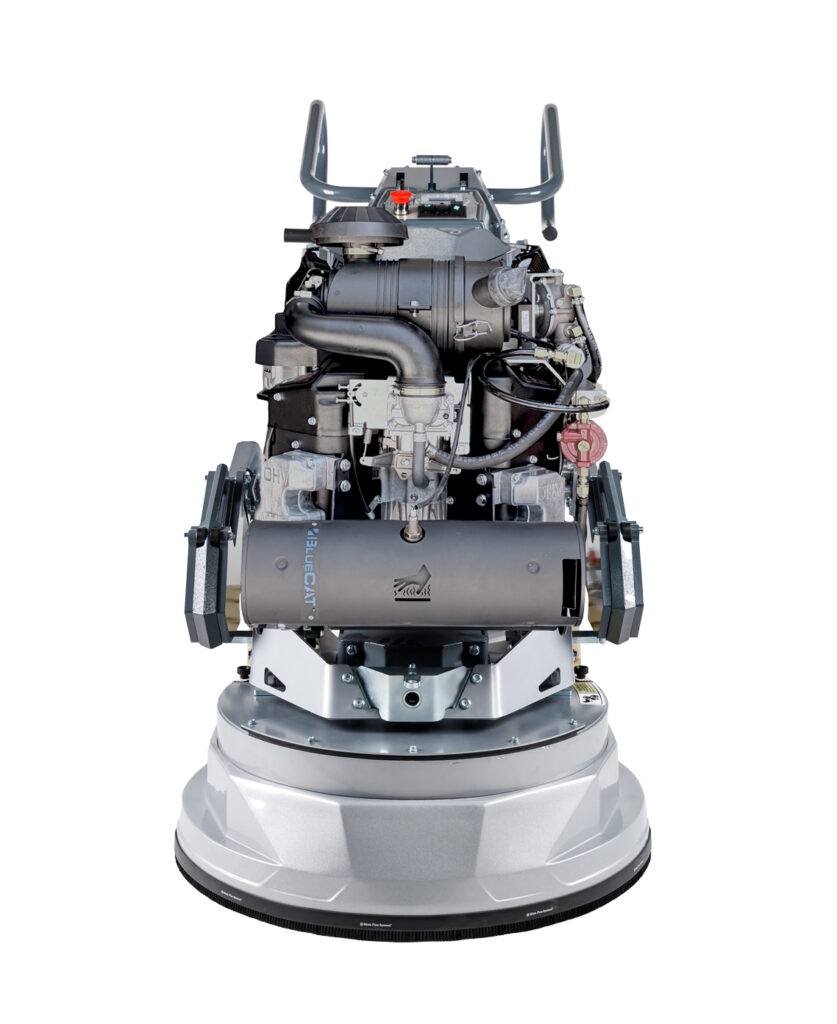

Lavina S7 propane grinder: L31GFXS7 - Updated Engine!
L31GFXS7 is a 31″ propane floor machine, designed for heavy-duty grinding. Now powered by the Kawasaki FX1000 engine, this new configuration was developed for greater performance and reliability on demanding job sites. The updated liquid propane fuel system offers longer run times and improved productivity. Proper air ventilation with access to FRESH AIR and proper equipment maintenance (see the operator’s manual) are of critical importance for your safety. Operators should always carry a CO monitor or badge.
S7 FEATURES

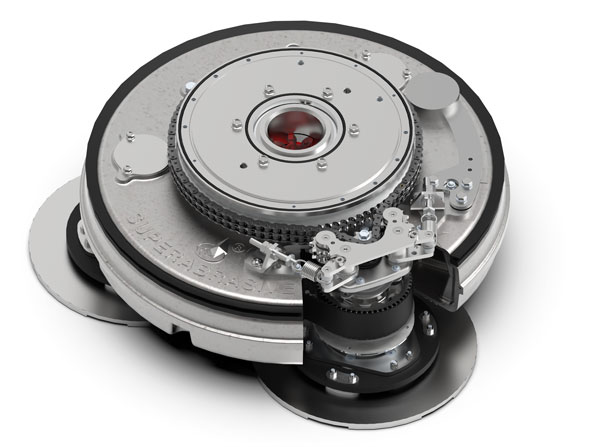

NEW SEALED & DUST-PROOF GRINDING HEAD
Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
NEW FRAME DESIGN
Better control, easier tool changes, and less vibrations.

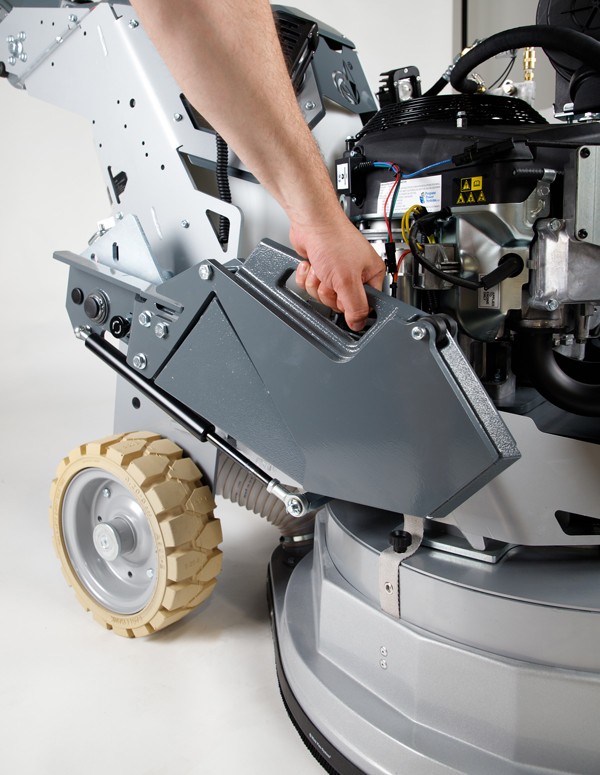

- New weights for faster position change
- Redesigned frame allowing easier tool changes
- New ergonomic handle design – faster adjustability and more positions
- Rubber bushing used at head attachment points – less vibrations for user
- Water tank cap
- Internal storage compartment
- Grinder Series:
- S7
- Grinder Type:
- Planetary
- Propane Engine:
- Kawasaki FX1000
- Engine Capacity:
- 35 HP
- Weight of Machine:
- 1014 lbs
- Grinding Pressure:
- 392-690 lbs
- Engine RPM:
- 2000-3600 RPm
- Working Width:
- 30.8 in
- Tool Holder Diameter:
- 3 x 13.2 in
- Propane Tank Capacity:
- 20 lbs
- Water Tank Capacity:
- 5.2 gal
- Heads Rotation:
- Counterclockwise
- Vacuum Hose Port:
- E300
- Machine Dimensions (LxWxH):
- 86x32x46 in
