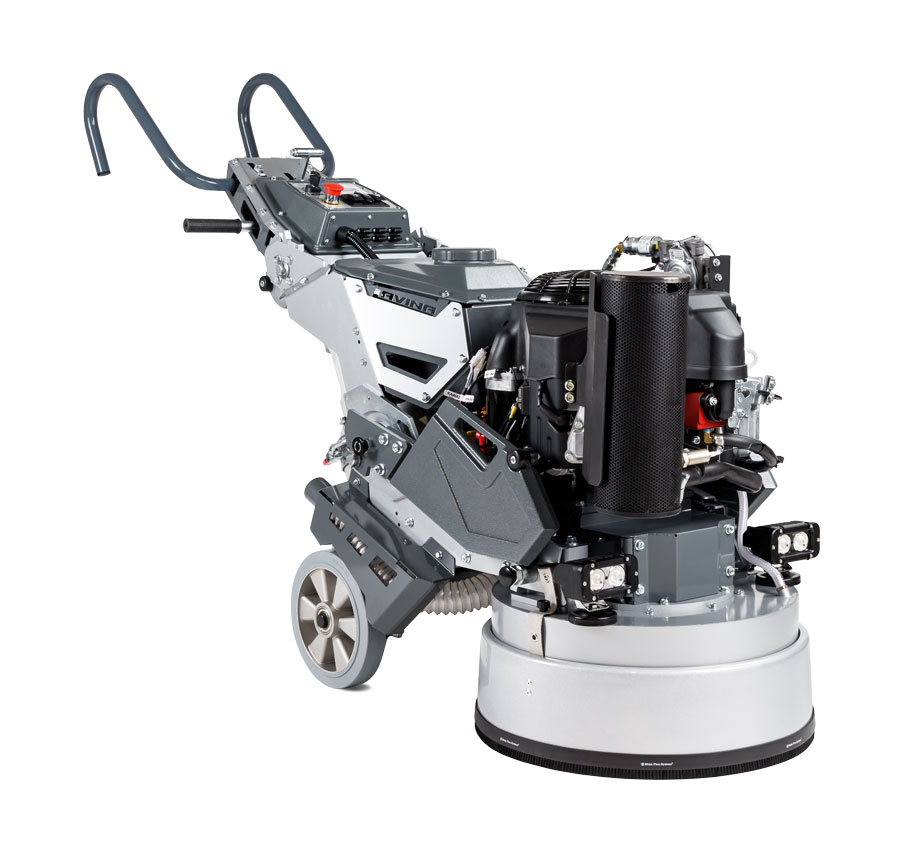

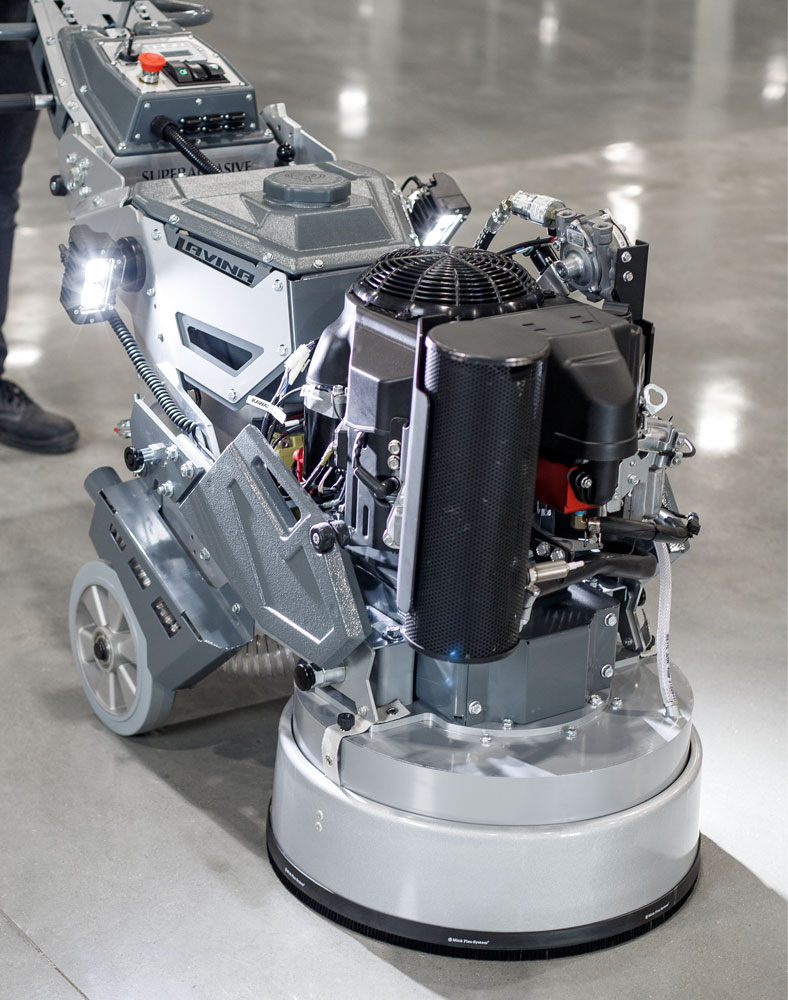

20" Propane Grinder L20GS7
The all-new 20-inch LAVINA S7 propane Grinder is the latest addition to the Lavina S7 lineup. It combines the compact 20-inch footprint with the new S7 features and upgrades to deliver superior performance.
NEW SEALED & DUST-PROOF GRINDING HEAD
- Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover
NEW FRAME DESIGN
- Better control, easier tool changes, and less vibrations.
- New weights for faster position change
- Redesigned frame allowing easier tool changes
- Ergonomic handle design for faster adjustability and more positions
- Rubber bushing used at head attachment points for less vibrations for user
- Grinder Series:
- S7
- Grinder Type:
- Planetary
- Engine:
- Kawasaki FS481V, 603 cc (18 hp / 13 kW)
- Engine RPM:
- 2000-3600
- Weight of Machine:
- 573 lbs
- Grinding Pressure:
- 286-363 lbs
- Tool Holder Diameter:
- 3 x 9 in
- Head Rotation:
- Counter-clockwise / left rotation
- Working Width:
- 20 in
- Propane Tank Capacity:
- 20 lbs
- Water Tank Capacity:
- 2.1 gal
