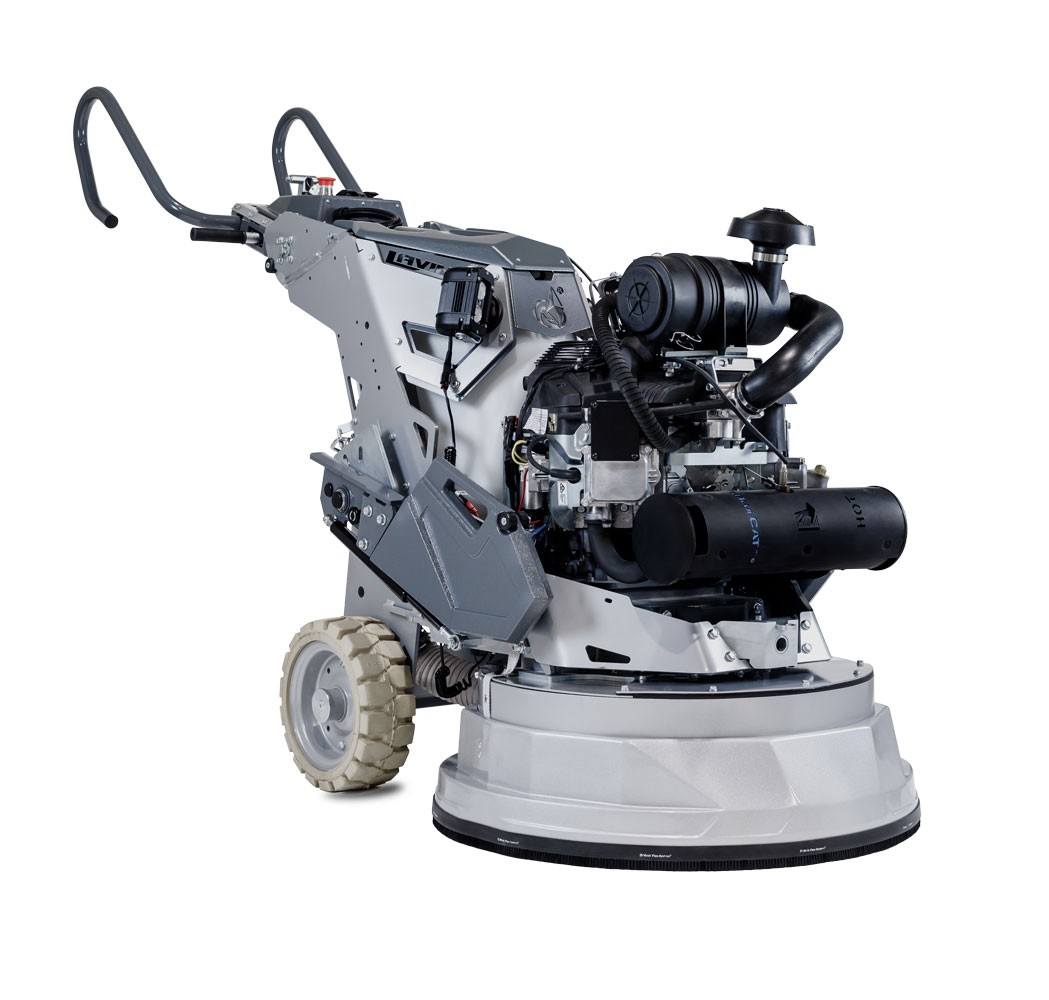

Lavina S7 propane grinder: L31GS7 makes heavy-duty grinding easy.
L31GS7 is a new addition to the LAVINA S7 lineup – a 31″ propane floor machine, designed for heavy duty grinding. It is equipped with a powerful Vanguard 35 hp engine, updated planetary drive and option to add more weight. With plenty of torque to handle any job, this machine is a beast.
S7 FEATURES
NEW SEALED & DUST-PROOF GRINDING HEAD
Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
NEW FRAME DESIGN
Better control, easier tool changes, and less vibrations.
- New weights for faster position change
- Redesigned frame allowing easier tool changes
- New ergonomic handle design – faster adjustability and more positions
- Rubber bushing used at head attachment points – less vibrations for user
- Water tank cap
- Internal storage compartment
- Grinder Series:
- S7
- Grinder Type:
- Planetary
- Propane Engine:
- Vanguard
- Engine Capacity:
- 35 HP
- Weight of Machine:
- 1014 lbs
- Grinding Pressure:
- 392-690 lbs
- Engine RPM:
- 2000-3600 RPm
- Working Width:
- 30.8 in
- Tool Holder Diameter:
- 3 x 13.2 in
- Propane Tank Capacity:
- 20 lbs
- Water Tank Capacity:
- 5.2 gal
- Heads Rotation:
- Counterclockwise
- Vacuum Hose Port:
- E300
- Machine Dimensions (LxWxH):
- 86x32x46 in
