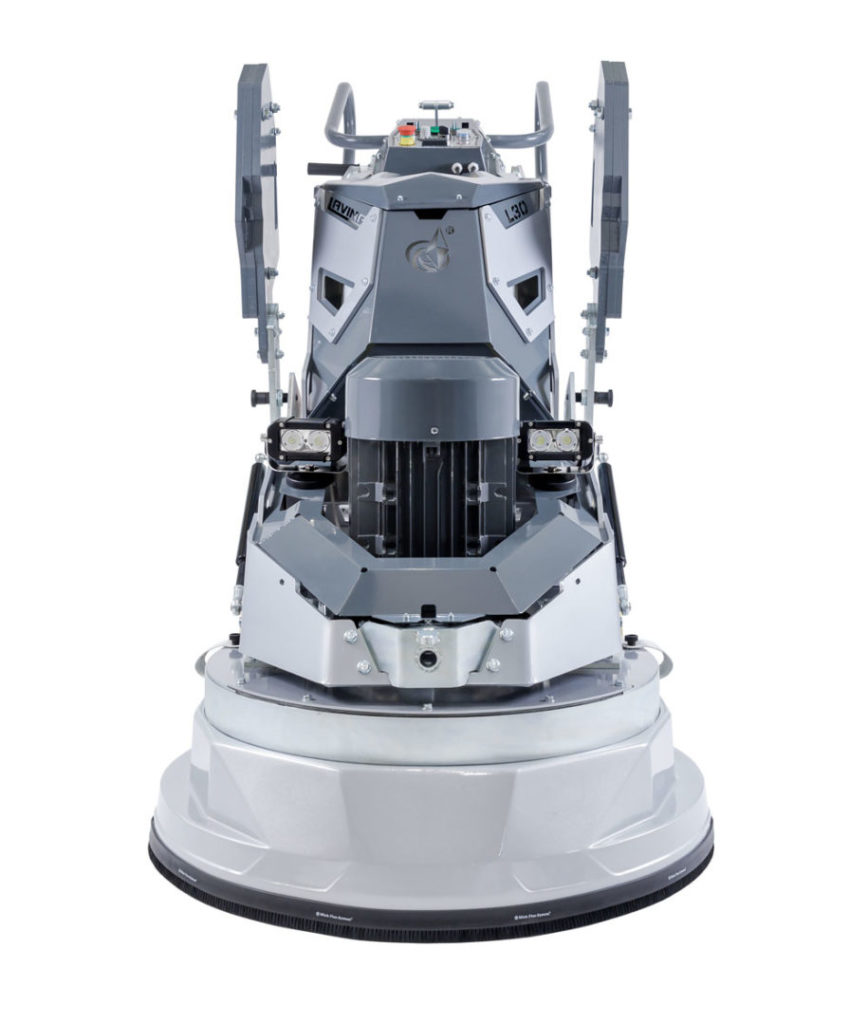

The new Lavina S7 series 30" electric floor grinder from Lavina has more torque, better control, and less maintenance, making it one of Lavina's best grinder series yet. The all-new frame design yields better control and easier tooling changes.
Features Contractors will Love:
- New weights for faster position change
- Redesigned frame allowing easier tool changes (head angle during tool changes is greatly improved, compared to Elite models)
- New handle design – faster adjustability, more positions
- Rubber bushing used at head attachment points - less vibrations for user
- Water tank cap
- Internal storage compartment
The new sealed and dust-proof head provides longer service life and less maintenance. New improvements also include:
- Completely redesigned chain-driven planetary drive with no chain tensioner
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
- Power:
- 15 hp / 11 kW
- Voltage (50-60 Hz):
- 3 phase, 200-240V | 3 phase, 400-480V
- Amperage (max):
- 45 Amp | 30 Amp
- Dedicated Breaker:
- 45 Amp | 30 Amp
- Weight of Machine:
- 908 lbs / 412 kg
- Grinding Pressure:
- 366-551 lbs / 166-250 kg
- Tool Holder RPM:
- 400-1200 rpm
- Working Width:
- 30.8 in / 783 mm
- Tool Holder Diameter:
- 3x13.2in / 3x335mm
- Vacuum Hose Port:
- Camlock E300
- Water Feed:
- gravity-fed
- Water Tank:
- 5.2 gal / 20 L
- Cable Length:
- 57 ft / 17.4 m
- Dimensions (LxWxH):
- 85 x 32 x 46 in / 216 x 82 x 116 cm
- Grinder Series:
- S7
- Grinder Type:
- Planetary
