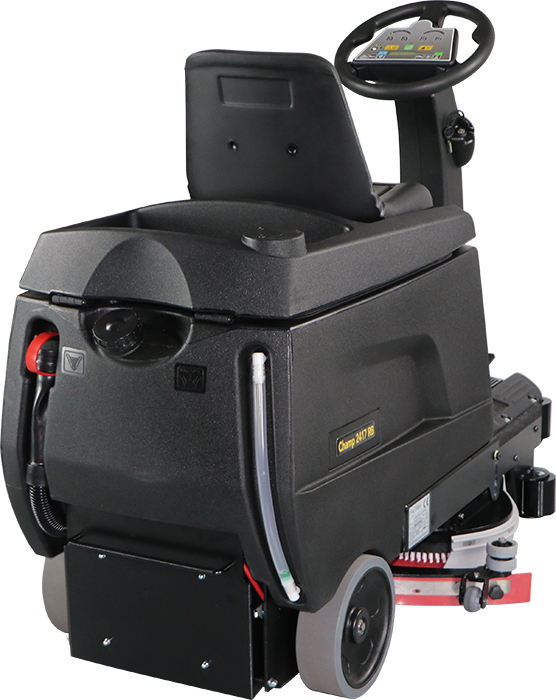

Champ 2417

Write a Review
Request Information Request Demo

The Champ 2417 delivers high productivity in a small package. With a 24" cleaning path, the Champ 2417 cleans 20% faster than similarly-sized 20" rider scrubbers.

  • Easy to use. A single button controls the scrub deck and the vacuum motor.
  • Maneuverable. The compact design, combined with a squeegee that swings tightly around the scrub deck, lets you pick up water during sharp turns.
  • Efficient. Scrub up to 32,100 ft2 per hour and make fewer trips to refill the machine because of the Champ 2417's sizable 17-gallon solution tank.
  • Conservation mode. Press the green leaf button to operate the scrubber with minimal water flow, chemical usage, brush speed and vacuum motor speed for maximum water and power efficiency.
Cleaning Path:
Pad Driver:
Two 12 inch poly block tufted (Standard)
Pad Pressure:
55 lbs
Two 12 inch brushes required (After-market)
Solution Tank:
17 gallons
Recovery Tank:
17 gallons
Squeegee Width:
Curved, 30.3 inches
Squeegee Material:
Linatex Rubber
Brush Motor:
0.33 HP (250 W) permanent magnet 175 RPM
Vacuum Motor:
3-stage, bypass, 0.54 HP
Water Lift:
50 inches
Drive Motor:
0.4 HP, permanent magnet
Drive Speed:
Up to 3.1 mph
Drive Wheel:
2 x 12V, 135 AH Wet Acid / 2 x 12V, 110 AH AGM
Battery Charger:
On-board, 100V - 240V input
Dimensions (LxWxH):
497-530 lbs
Practical Productivity:
14,900 (sq.ft./hr.)
Theoretical Productivity:
32,100 (sq.ft./hr.)
