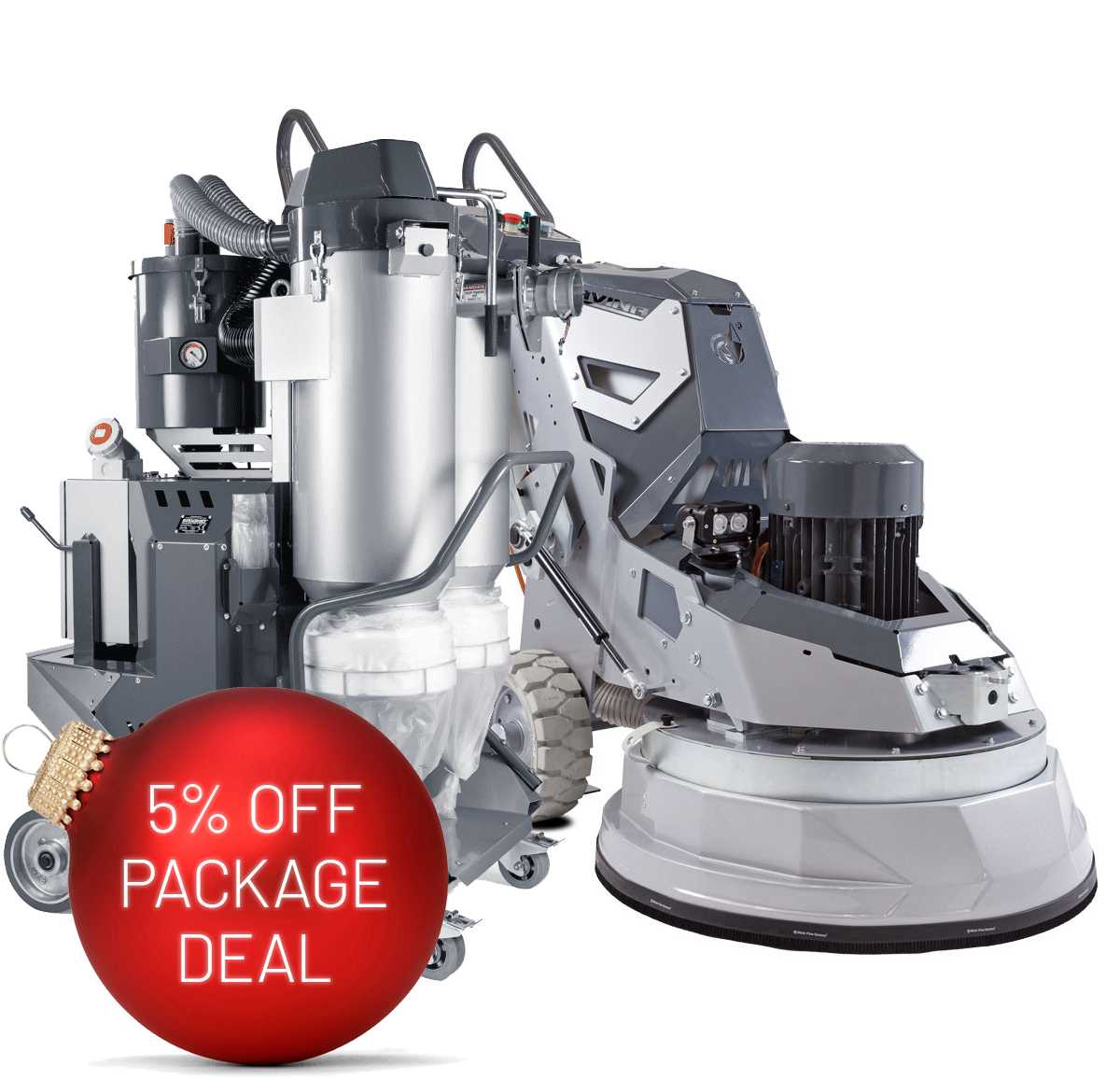

L30S7 Electric Grinder & V32E230/480 Electric Dust Extractor
The new Lavina S7 series 30" electric floor grinder from Lavina has more torque, better control, and less maintenance, making it one of Lavina's best grinder series yet. The all-new frame design yields better control and easier tooling changes.
END OF YEAR SALE VALID UNTIL DECEMBER 30TH OR WHILE SUPPLIES LAST. CANNOT BE COMBINED WITH ANY OTHER OFFERS.
| L30S7 & V32E230/480 |
- Power:
- 15 hp / 11 kW
- Voltage (50-60 Hz):
- 3 phase, 200-240V | 3 phase, 400-480V
- Amperage (max):
- 45 Amp | 30 Amp
- Dedicated Breaker:
- 45 Amp | 30 Amp
- Weight of Machine:
- 908 lbs / 412 kg
- Grinding Pressure:
- 366-551 lbs / 166-250 kg
- Tool Holder RPM:
- 400-1200 rpm
- Working Width:
- 30.8 in / 783 mm
- Tool Holder Diameter:
- 3x13.2in / 3x335mm
- Vacuum Hose Port:
- Camlock E300
- Water Feed:
- gravity-fed
- Water Tank:
- 5.2 gal / 20 L
- Cable Length:
- 57 ft / 17.4 m
- Dimensions (LxWxH):
- 85 x 32 x 46 in / 216 x 82 x 116 cm
- Grinder Series:
- S7
- Grinder Type:
- Planetary
